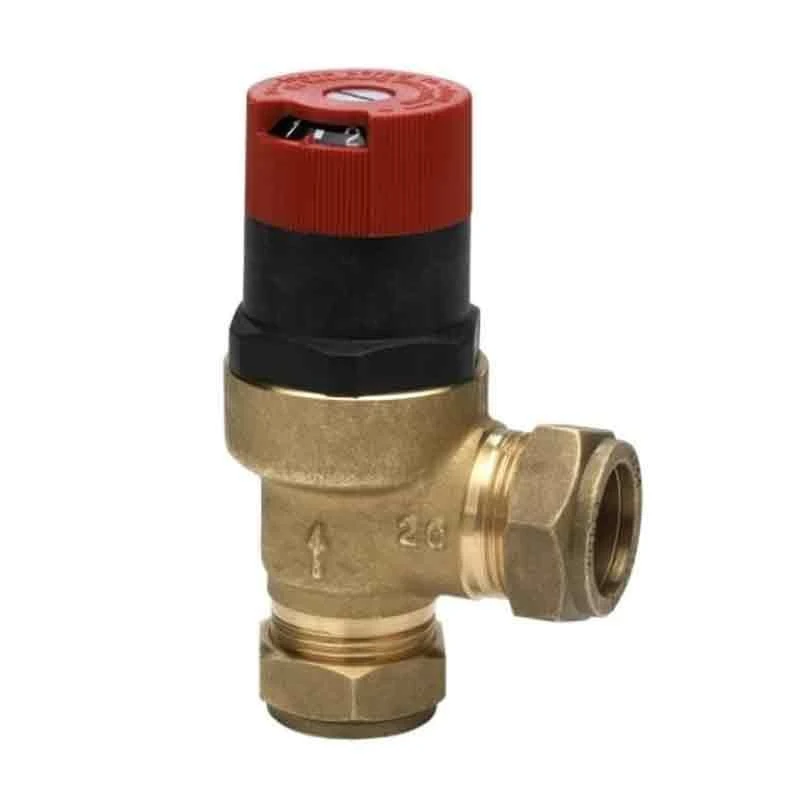

Honeywell Angled Radiator Auto Bypass Valve 22mm – DU145-3/4B

Honeywell Angled Radiator Auto Bypass Valve 22mm – DU145-3/4B

The Honeywell Angled Radiator Auto Bypass Valve controls water flow in the heating circuit according to the water pressure across it and is used to maintain a minimum flow rate through the boiler and to limit circulation pressure when other water paths are closed. The boiler return temperature is raised and this reduces the corrosion caused by flue gas condensation. In addition, when radiator valves are closed it also maintains flow over the temperature sensor on the boiler to ensure proper operation of external temperature compensating controls. On gas fired water heaters it guarantees a minimum flow circulation when thermostats or radiator valves are closed.

Key Features

• Unique and simple adjustment mechanism
• High capacity flow – up to 50 litres per minute
• Wide differential pressure range 0.1 to 0.6 bar
• 22mm compression fittings for ease of installation
• Reduces system noise and maintains an even system pressure
• Ensures constant flow through boiler
• Lockable set pressure prevents inadvertent adjustment

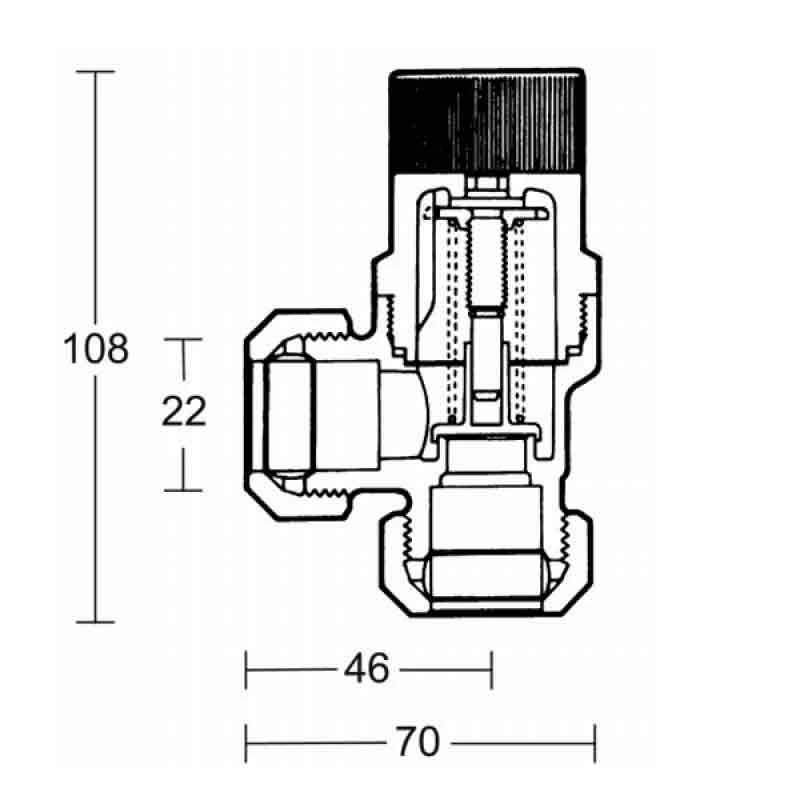

• Dimensions: 108 x 70mm
• 1 year manufacturers guarantee
