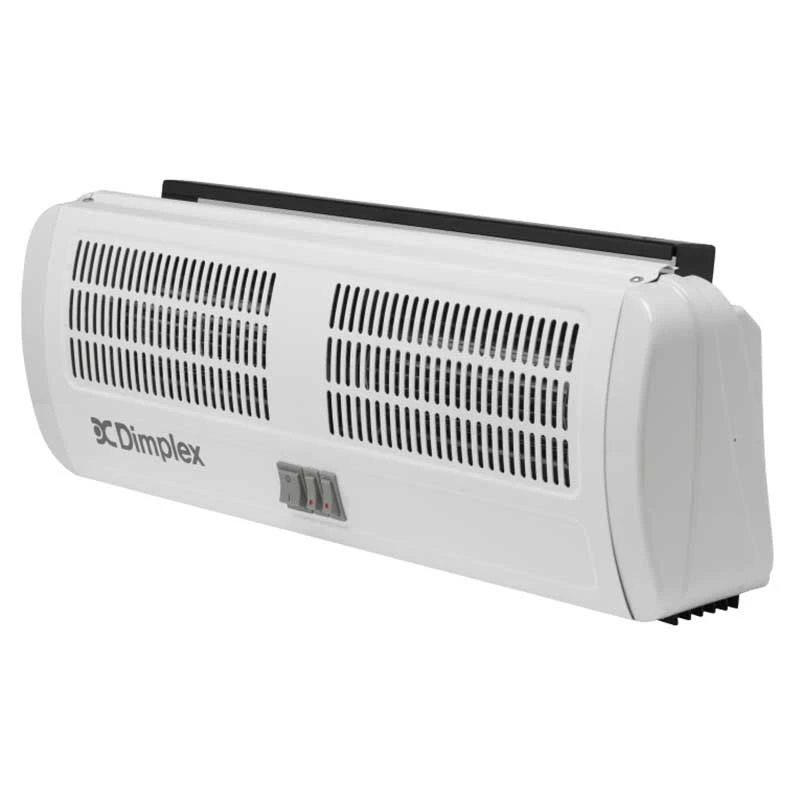

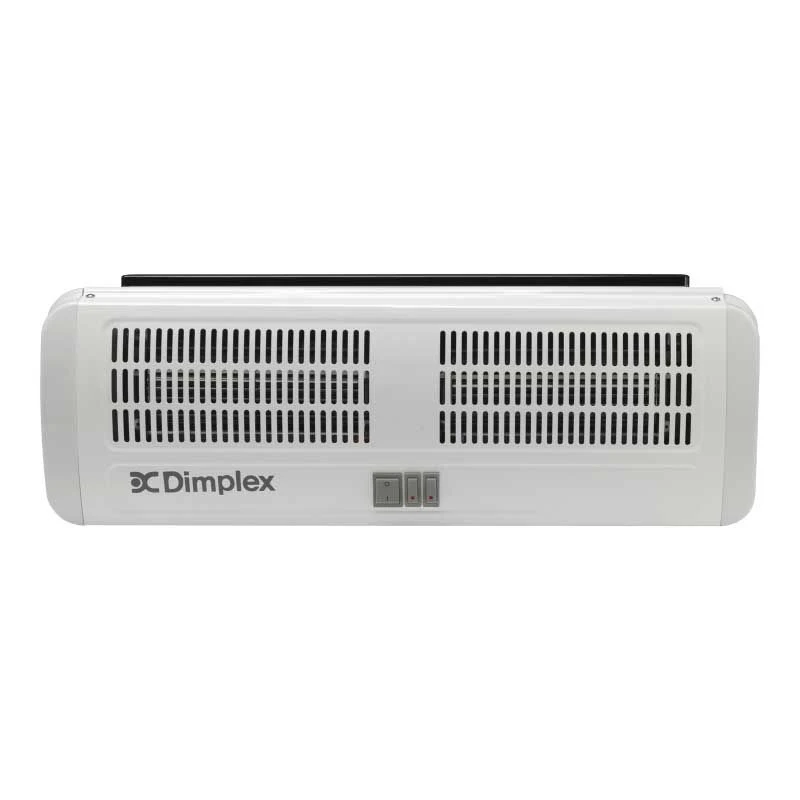

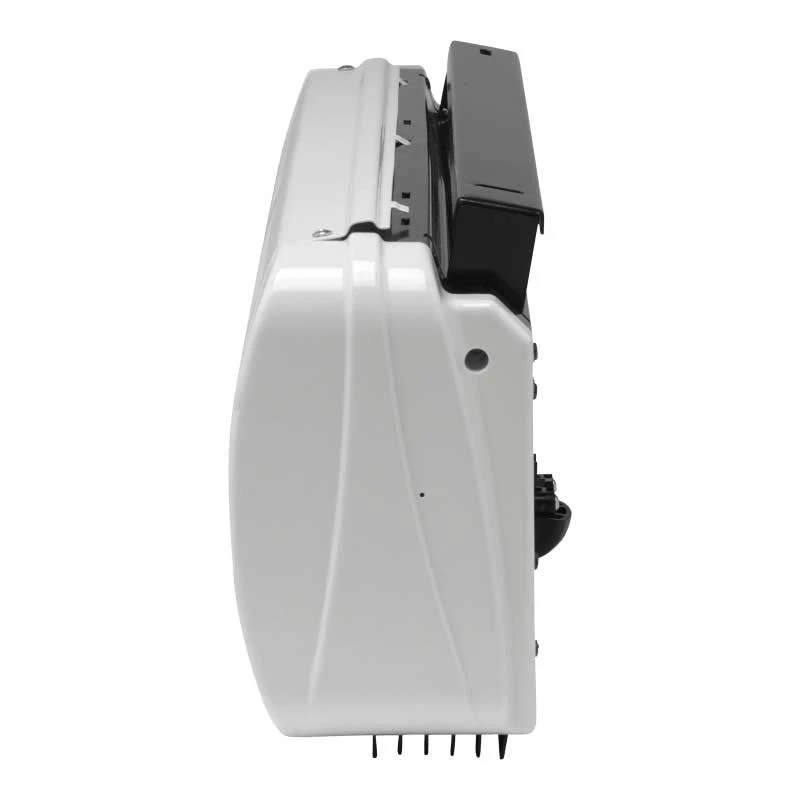

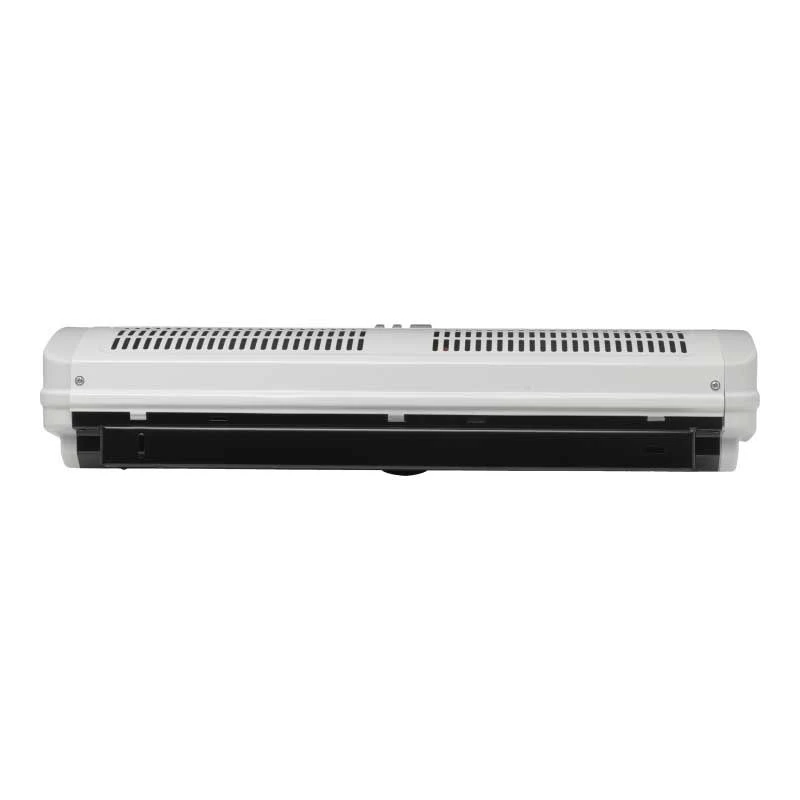

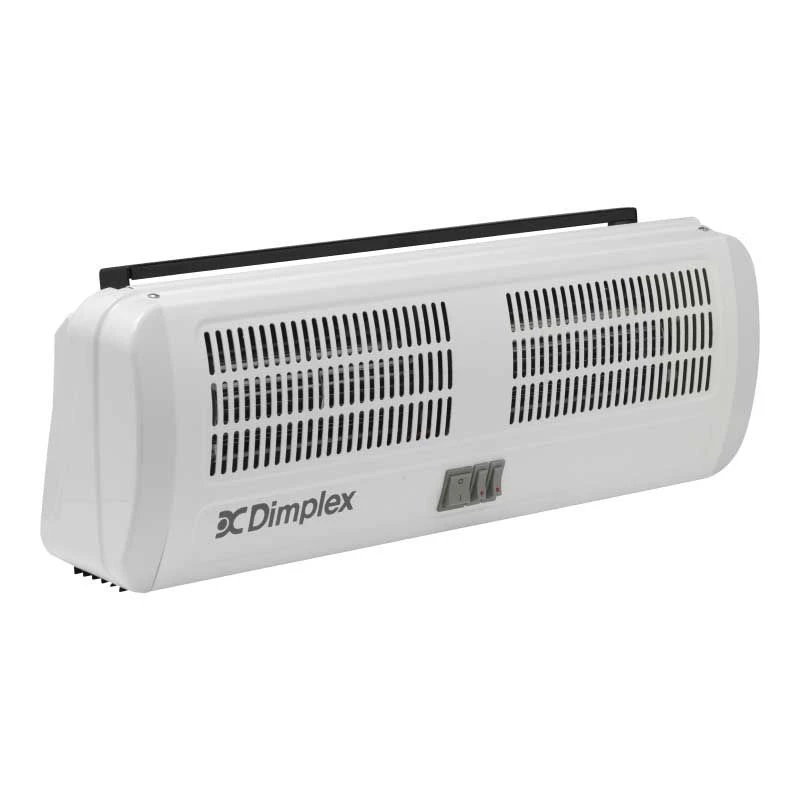

Dimplex AC3N 3kW Over Door Air Curtain Heater – AC3N

Dimplex AC3N 3kW Over Door Air Curtain Heater Details

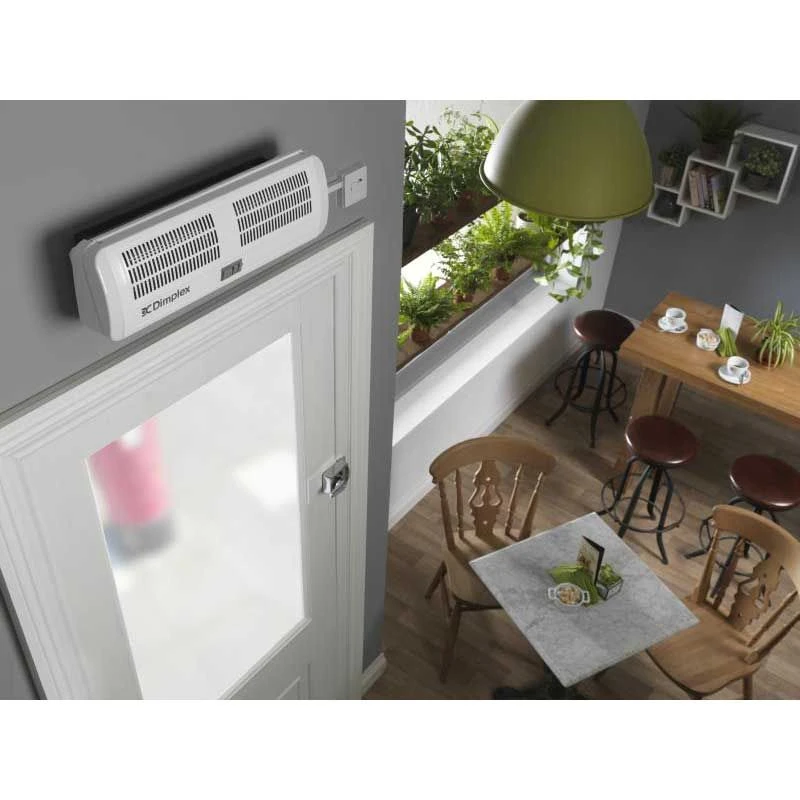

The Dimplex AC3N is an over door heater that provides multi-directional, powerful and effective heating above the entrance to shops, offices and almost any small doorway. When fitted above an open door, the warm airflow encourages trade by allowing doors and entrances to remain ‘open for business’ in many commercial applications.

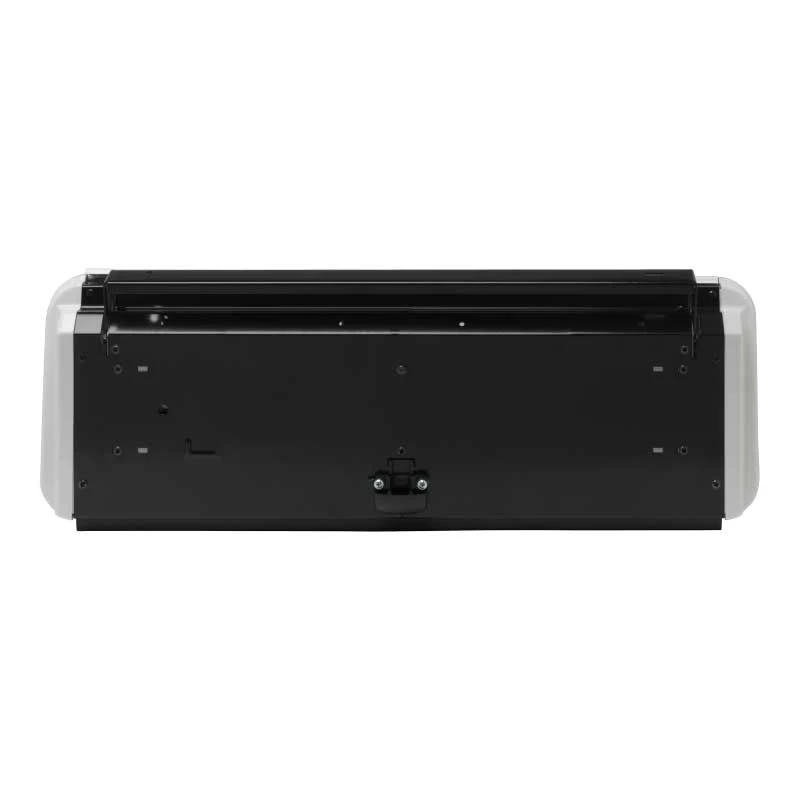

The AC3N comes with full heat, half heat and fan only settings, and has an adjustable airflow direction. Installation is easy using the wall bracket provided and the heater is designed to be fitted on the wall or ceiling. Cable is not included with the AC3N fan heater as it is designed for permanent connection to the fixed wiring of the premises through an adjacent double-pole switch or conduit connection.

The AC over-door heaters are also ideal for any situation where a high-level fan heater is required, and offer increased convenience with the remote control AC3RE version. The AC range of over-door heaters are designed to provide a “warm welcome” over doorways. This product should not be specified for indoor space heating to reach and maintain a certain thermal comfort of human beings.

The standard AC3N and AC45N are suitbale for single doors whilst the AC6N is suitable for double doors. The AC3RN offers increased convenience with the remote control and the AC3CN is ceiling recessed.

Key Features

• Colour/Finish/Material: Pressed steel case with white powder coat finish
• Dimplex model number: AC3N
• Size: H230 x W730 x D170mm
• Weight (kg): 5.00
• Recommended Mounting Height (m): 1.8—2.3 m
• Controls: On-board controls
• Heat Output (kW): 3
• Heat Selection: Off / Half / Full Heat
• Heat source: Electricity
• Installation: Designed for installation into plaster or suspended ceilings.
• IP Rating: IP21
• Location of Heat Output: Downwards, out of grille
• Sound Power Level dB(A) (High/Low Speed): 50.5
• Warranty / Guarantee: 12 months
