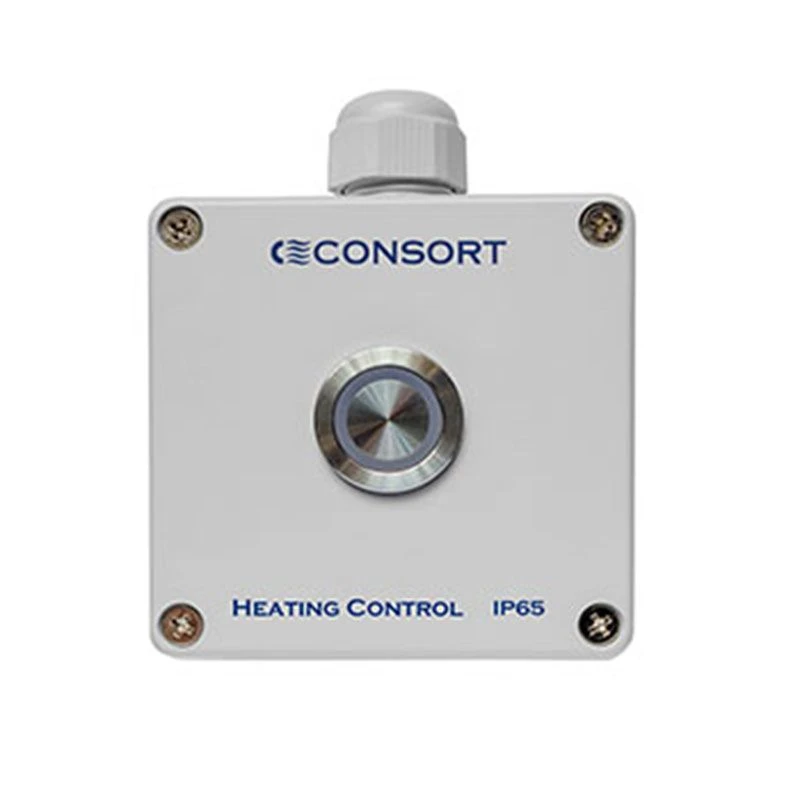

Consort Claudgen Wireless Controller (Waterproof Run-Back Timer And Thermostat) – SLPBWP

Consort Claudgen Wireless Controller (Waterproof Run-Back Timer and Thermostat) SLPBWP – Details

This SLPBWP Consort Claudgen wireless controllers that is waterproof is ideal for outdoors, bathrooms and other wet areas. Suitable for any commercial premises where a heating cycle is required to be operational only when a controller is activated.

The SLPBWP is an IP65 rated waterproof run-back timer and thermostat which allows the heaters to operate only when the controller is activated.

The SLPBWP has one control button, a status indicator and operating modes which are set prior to the controller’s installation.

Basic mode: The controller simply switches the heater on and off when the button is pressed.

Timer mode: It acts as a run-back timer where the heating period will be active until the run-back timer expires.

Temperature Control mode: It features temperature control for comfort and setback periods which can also be used in conjunction with the Timer mode.

Key Features

• IP65 rated
• Can operate multiple SL heaters
• 3 operating modes:
• Basic: Switches the heater on and off when button is pressed.
• Timer: Controller acts as a run-back timer where heating period will be active until run-back timer expires.
• Temperature control: Features temperature control for comfort and setback periods.
• Choice of 3 total time periods in Timer mode: 15, 30 or 60 minutes
• Comfort heat setting between 15°C to 35°C
• Setback temperatures can be used for frost protection or maintaining a minimum room temperature 0°C to 15°C
• 1 light indicator around the button to show the status of the controller
• Easy operation
• External input available to connect to any voltage free contact such as timers or BMS
• Can be powered by either mains 240V or 12VDC which allows SELV (Separated Extra Low Voltage) installation.
• Dimensions: H81 x D57 x W83mm
