Consort Claudgen Wireless Controller (Run-Back Timer And Adjustable Thermostat) – SLVT

Consort Claudgen Wireless Controller (Run-Back Timer and Adjustable Thermostat) SLVT – Details

This SLVT Consort Claudgen wireless controller with addition to the run-back timer function, offers temperature control and an easy-to-read digital display showing the room temperature.

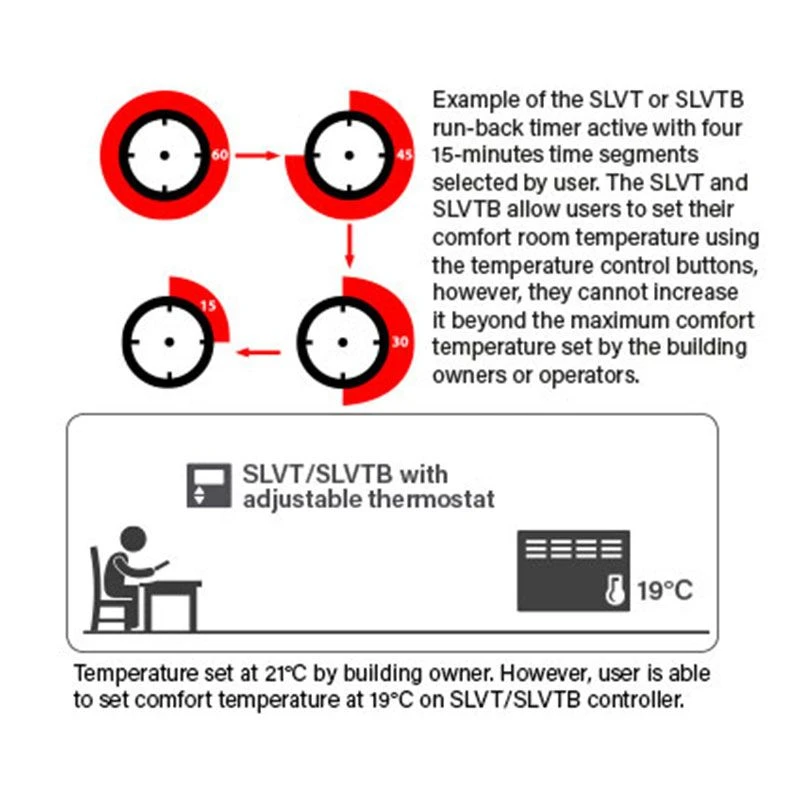

The SLVT has four status indicators and two operating modes which are set prior to the controller’s installation. It offers temperature control where users can set their comfort temperature using either one of the temperature control buttons, however, they cannot increased it beyond the maximum comfort temperature set by the building owners or operators. In Temperature and Timer mode, it acts as a 4-stage run-back timer where the heating period will be active until the run-back timer expires. There is a choice of three time periods available: 5, 15 or 30 minutes. When the button is pressed four times, this takes the run-back time period to 20, 60 or 120 minutes. In Temperature Control mode, it features temperature control for comfort and setback periods

In Temperature and Timer mode, it acts as a 4-stage run-back timer where the heating period will be active until the run-back timer expires. There is a choice of three time periods available: 5, 15 or 30 minutes. When the button is pressed four times, this takes the run-back time period to 20, 60 or 120 minutes. Target room temperature can be set using the temperature control buttons.

In Temperature Control mode, it features temperature control for comfort and setback periods which can also be used in conjunction with the Timer mode.

Key Features

• Can operate multiple SL heaters
• Display screen shows actual room temperature, except briefly when either of the two control buttons are pressed, the new target room temperature is then temporarily displayed
• Can set display for either Celsius or Fahrenheit
• Can set maximum comfort temperature
• Variable comfort control for user to adjust the room temperature below the maximum comfort temperature
• 2 operating modes:
• – Temperature and Timer Control: Controller acts as a 4 stage run-back timer where heating period will be active until run-back timer expires. Target room temperature can be set using the temperature control buttons.
• – Temperature Control: Features temperature control for comfort and setback periods.
• Choice of 3 time periods in Timer mode: 5, 15 or 30 minutes
• Comfort temperature will maintain the set room temperature
• Setback temperatures can be used for frost protection or maintaining a minimum room temperature
• 4 light indicators around the button to show the status of the controller
• Easy operation
• Fits onto any standard single gang box
• External input available to connect to any voltage free contact such as timers or BMS
• Can be powered by either mains 240V or 12VDC which allows SELV (Separated Extra Low Voltage) installation
• Dimensions: H86 x D26 x W85mm
