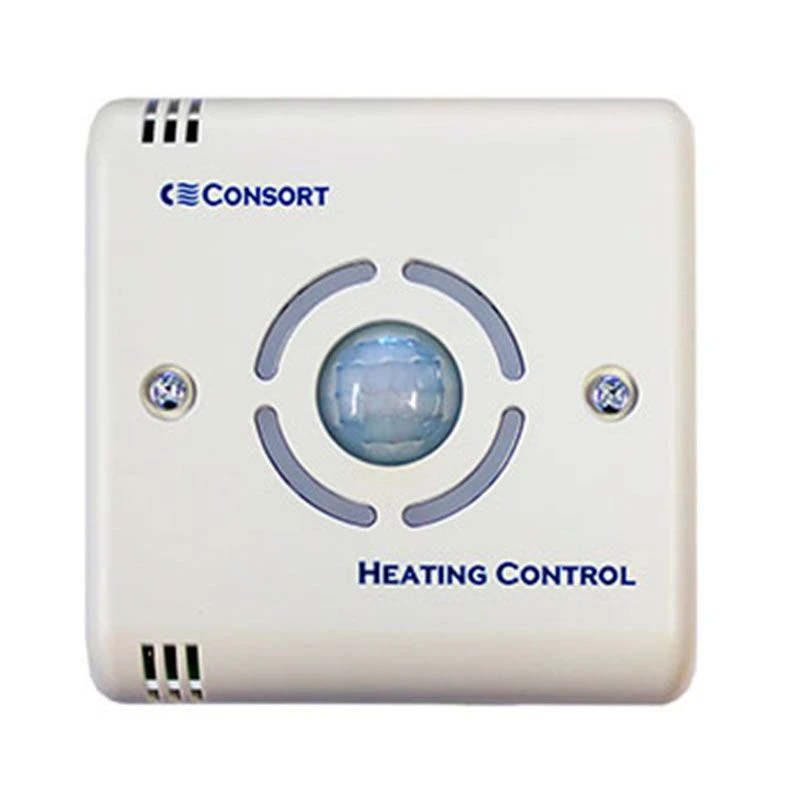

Consort Claudgen Wireless Controller (Motion Activated Run-Back Timer) – SLPIR

Consort Claudgen Wireless Controller (Motion Activated Run-Back Timer) SLPIR – Details

This SLPIR Consort Claudgen wireless controller has a motion activated run-back timer that once activated from up to 5 metres, will allows the heater to increase the room temperature to its designated comfort setting.

If no movement is detected by a predetermined time the heater is either switched off or the temperature can be held at a lower background level. The SLPIR controller is designed to control multiple SL heaters or SL receivers within the RF signal range.

When a movement is detected, all the indicator segments will light up and the heating is activated for a set period of time. If no movement is detected by a predetermined time, the heater is either switched off or the temperature can be held at a lower background level.

Key Features

• Can operate multiple SL heaters or SL receivers
• Motion sensor range of up to 5 metres
• Detection area: 60 degrees vertical, 120 degrees horizontal
• Controller acts as a run-back timer where a full heating period is activated when the controller detects movement
• Choice of 4 time periods: 5, 15, 30 and 60 minutes
• Comfort heat setting between 15°C to 35°C
• Setback temperatures can be used for frost protection or maintaining a minimum room temperature 0°C to 15°C
• 4 segment light indicator which counts down the time
• Easy operation
• Fits onto most standard single gang box
• External input available to connect to any voltage free contact such as timers or BMS
• Can be powered by either mains 240V or 12VDC which allows SELV (Separated Extra Low Voltage) installation
• Dimensions: H86 x D26 x W85mm
