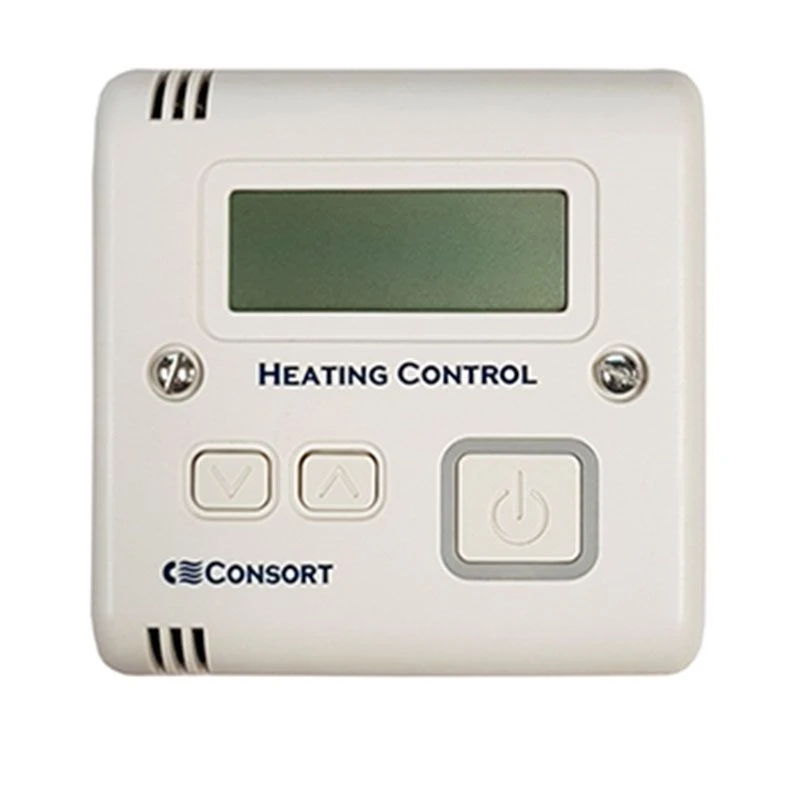

Consort Claudgen Wireless Controller (Battery Powered Run-Back Timer And Adjustable Thermostat) – SLVTB

Consort Claudgen Wireless Controller (Battery Powered Run-Back Timer and Adjustable Thermostat) SLVTB – Details

This SLVTB Consort Claudgen wireless controller provides similar functions and benefits as the SLVT controller except SLVTB is battery-powered. Status indicators are shown on the screen.

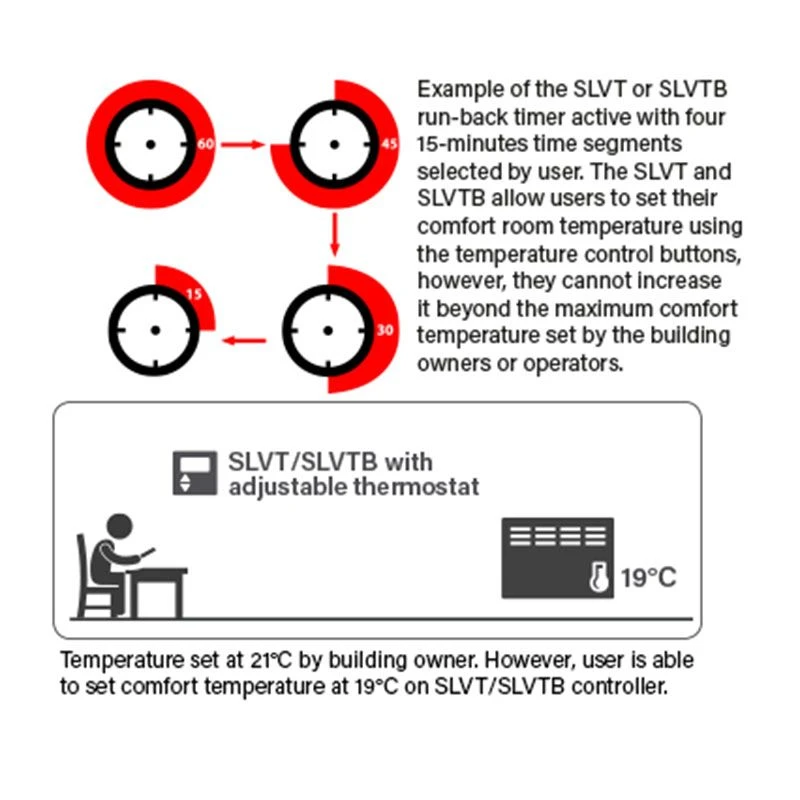

Temperature and Timer mode: It acts as a 4-stage run-back timer where the heating period will be active until the run-back timer expires. There is a choice of three time periods available: 5, 15 or 30 minutes. When the button is pressed four times, this takes the run-back time period to 20, 60 or 120 minutes. Target room temperature can be set using the temperature control buttons.

Temperature Control mode: It features temperature control for comfort and setback periods which can also be used in conjunction with the Timer mode.

Key Features

• Powered by 2 ‘AAA’ 1.5V batteries

Can operate multiple SL heaters

• 2 operating modes:
• – Temperature and Timer Control: Controller acts as a 4 stage run-back timer where heating period will be active until run-back timer expires. Target room temperature can be set using temperature control buttons.
• – Temperature Control: Features temperature control for comfort and setback periods.
• Choice of 3 time periods in Temperature and Timer mode: 5, 15 or 30 minutes
• Comfort temperature will maintain the set room temperature
• Setback temperatures can be used for frost protection or maintaining a minimum room temperature
• Display screen shows actual room temperature, except briefly when either of the two temperature control buttons are pressed, the new target room temperature is then temporarily displayed
• In Temperature and Timer mode, pressing the main button will briefly display the time remaining. Pressing it again adds on the pre-set time segment to the run-back timer.
• Active heating mode is indicated by a letter displayed on the left side of the display screen:-
• – ‘t’: Displayed in run-back timer mode when the heating is activated and flashes when the comfort temperature is reached.
• – ‘h’: Displayed in standard mode when the heating is activated and flashes when the comfort temperature is reached.
• Can set display for either Celsius or Fahrenheit
• Can set maximum comfort temperature
• Variable comfort control for user to adjust the temperature below the maximum comfort temperature
• Easy operation
• Fits onto any standard single gang box
• Dimensions: H86 x D26 x W85mm
