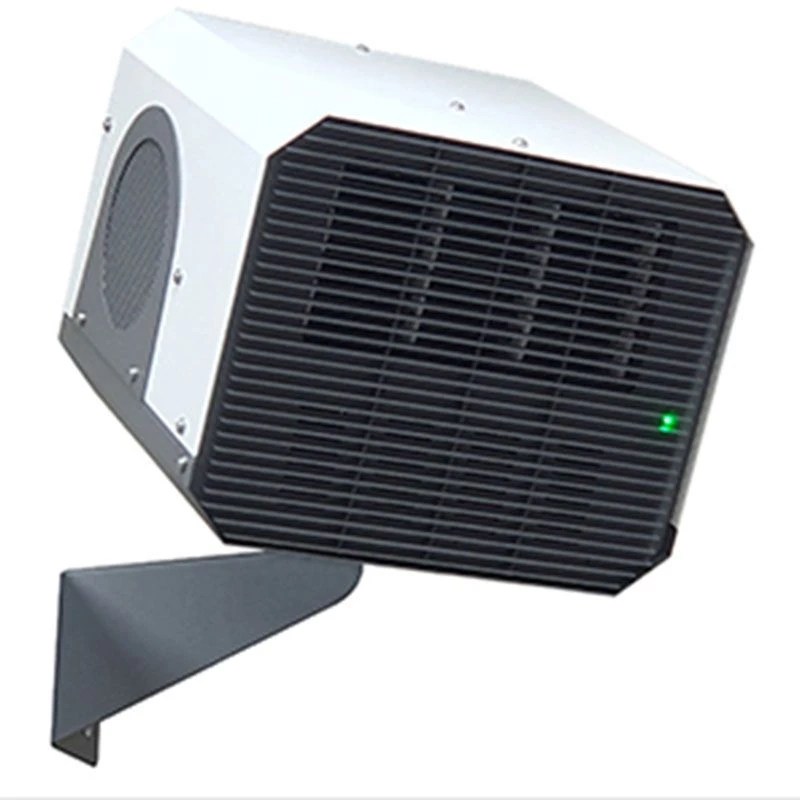

Consort Claudgen Small Commercial Fan Heater – Wireless Controlled 6kW – Single/3 Phase – CH06CPIRX

Consort Claudgen Small Commercial Fan Heater Wireless Controlled 6kW – Single/3 Phase CH06CPIRX – Details

This CH06CPiRX Consort Claudgen single or three phase wireless wall mounting commercial fan heater provides a “heat throw” of 7m at maximum fan speed. The intelligent fan control optimises fan speed and heat output to quickly achieve and control a comfort temperature whilst maintaining a very low noise level. With a sensor to detect the room temperature and heat output, 2 automatic fan speeds, 2 heat settings and with a fan only setting for air circulation, the user has many options when heating a space.

Wireless controlled by separately purchased CRX2 controller which can operate multiple RX heaters.

Key Features

• Colour: White
• Wattage Output: 6kW
• Requires a separately purchased CHMC or CRXSL wireless controller
• Single or 3 phase supply models
• Sensor to detect the room temperature
• Intelligent Fan Control feature:- The fan speed of the heater automatically adjusts relative to the room’s current temperature in order to achieve warm airflow temperature. This eliminates the heater from blowing cold air when initially powered on in a cold room
• Incorporates EC motor for improved energy efficiency
• Electronic fault monitoring
• One CRXSL controller can operate multiple heaters in single zone configuration
• One CHMC controller can operate a maximum of 8 heaters with individual control
• Time/Manual mode in CRXSL controller:
• – Allows fan and heat settings to be adjusted manually
• – Allows set time schedule for fan and heat settings
• CRXSL controller is compatible with separately purchased MRX1 Multizone controller for ‘zoning’ of the heating system
• Instant directional warmth
• 3 fan speeds, 3 heat settings with CRXSL (in Manual mode)
• 8 fan speeds, 8 heat settings with CHMC (in Manual mode).=
• Fan only setting for air circulation
• Wall mounted with multi-directional brackets supplied (180° horizontal, 45° vertical)
• Maximum heat throw: 11 metres
• Size: H:272 x W:318 x D:332
